IDMAX10     10"     500W     1000W     19.5mm     0.5-1.25     1.0-2.0

IDMAX12     12"     500W     1000W     19.5mm    0.65-1.8     1.25-2.25

IDMAX15     15"     600W     1200W     22.0mm      1.5-3.0     2.0-4.0

Rec. RMS     Max RMS     XMax OneWay    Sealed f3         Ported f3

Available in dual 2Ω and 4Ω impedance​​

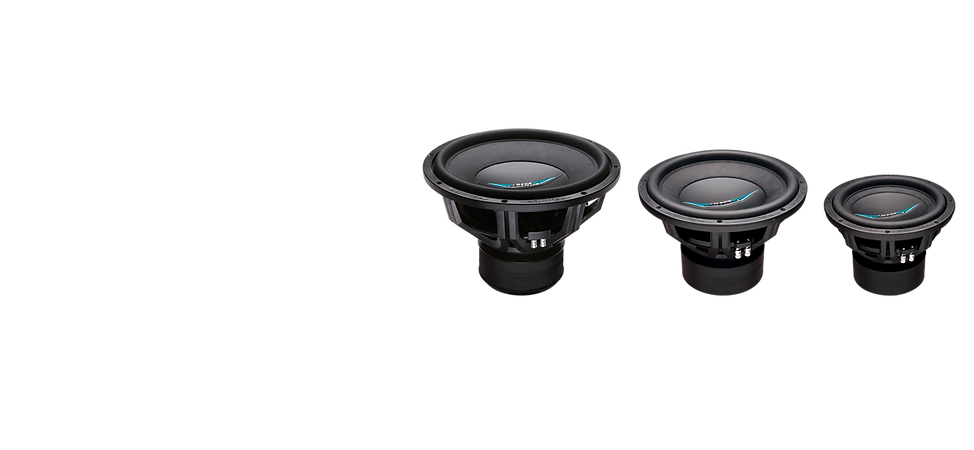

IDMAX subwoofers were engineered with the perfect blend of power and grace and are able to reproduce the subtlest of details at even the lowest of frequencies while withstanding extremely high output levels for a total performance that is simply unique.  The IDMAX Subwoofer was developed with the sound enthusiast in mind that likes to listen to it clean and loud, creating unmatched levels of sound pressure level while maintaining total tonal control is what sets this subwoofer apart from the rest.

High Excursion Design allows acoustically linear bass output at all rated power levels.



Parabolic Santoprene Surround to ensure cone linearity and control.



Glass Fiber/Pulp Cone for low distortion and natural sound reproduction.



Nomex Spider for consistent control throughout the  piston range and life of the  woofer.



Aluminum Neck Joint allows the  woofer to handle more raw  power without any  mechanical failure or flex while pulling heat away from the  voice coil.



American Made Flat  Wound Extended Voice Coil gives our  woofers higher magnetic flux (strength) and more voice coil “traction” in the  magnetic gap with  over 1.813” of linear travel in the  magnetic gap.



Extended Y-35 Motor Structure allows the  voice coil to move freely without any  mechanical bottoming out  while producing a very  powerful flux field.



Field Replaceable Cone Assembly can  be changed in 10 minutes with  only  16 screws and alignment shims that come with  our  recone kits.

Need Help? Contact:

IMAGE DYNAMICS IDMAX SUB WOOFERS are the only "green" sub woofers on the market today
Rebuild your woofers easily without the need of glue!
See below for a tutorial on how to re-cone your IDMAX Driver
